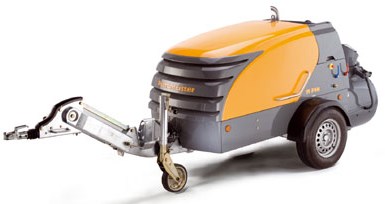

Putzmeister M760 DH Gen 3
M760 DH Gen 3 in action
Putzmeister M760 DH Gen 3
UKSGP welcomes the New M760 DH Third Generation pump for our hire fleet. With the new state of the art control panel, low noise level and diesel consumption this is perfect for the large construction site with up to 50 stories or 200m horizontal discharge.
Download Specs
You can download this tech sheet, simply by clicking the button to the right.
Technical Data
Features
| Machine model | M760 DH |
| Output | 4 m³/h |
| Compressor | 5.0 m³/min, switch off pressure 7 bar |
| Engine | 4 cylinder Deutz diesel engine, model D 2011 L04, 46.5 kW at 2,6000 rpm, oil cooled |
| Engine Power | 46.5 kW |
| Engine Rotations | 2600 UpM |
| Filling Height | 820 mm |
| Weight | 1600 Kg |
| Length | 4820 mm |
| Width | 1500 mm |
| Chassis | Fully galvanised chassis with adjustable coupling height (20 - 80 cm), robust T-chassis |
