Putzmeister SP25 DQR

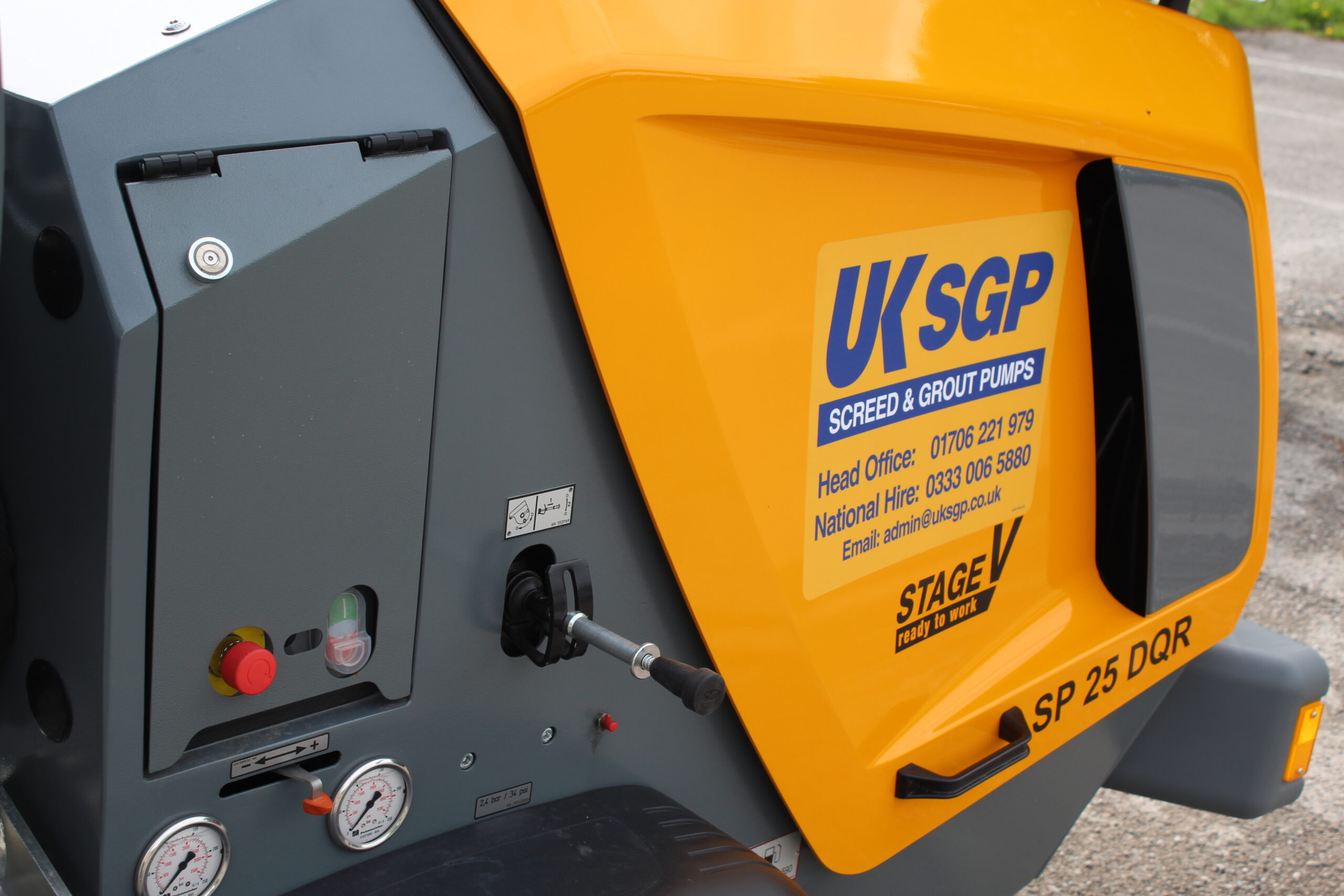

SP25 DQR in action
Putzmeister SP25 DQR
The powerful worm pump with compulsory mixer is suitable for a variety of other special applications such as concrete renovation or filling and grout work, in addition to classic interior and exterior plastering. The increased efficiency focuses on higher throughputs, as well as longer conveying distances and higher delivery pressures.
Multicomponent materials and ready-mix dry mortar can be mixed on the construction site in the powerful compulory mixer for any mixing time. The Lifting function of the mixer allows a lower filling hieght and permits the simple transfer of the mixed batch to the conveyor hopper.
Download Specs
You can download this tech sheet, simply by clicking the button to the right.
Technical Data
Features
| Technical Data | SP25 DQR |
|---|---|
| Pump Type | 2L6, optional 2L75 |
| Delivery Pressure | 20 bar, optional: 35 bar |
| Theoretical Delivery Rate* | 0.3-4.5m3/h (2L6), optional: up to 15m3/h (2L75) |
| Delivery Distance** | 70m horizontal and 50m vertical for exterior/interior plaster |
| Compressor | 2-cylinder compressor, 7 bar, 400l/min |
| Trap Mixer | 240ltrs |
| Conveyor Hopper | 250ltrs |
| Engine | 3-cylincer Kubota Diesel 28kW (Stage V) |
| Chassis | Braked, approved for road use |
| Weight | 1050kg |
| Length x Width x Height | 4280 x 1410 x 1480mm (with mixer in up position) |
| Filling height | 770mm |
| Maximum Particle Size | 6mm (2L6), 8mm (2L75 |
| * The delivery rate is theoretical and depends on the pump pressure. Depends on the pump used, the delivery rate may be higher or lower. | |
| ** The data is based on experience and is dependant on the materials used. | |
- Large lifting mixer with 240ltr volume allows mixing of larger materials quantaties/containers
- Lowerr filling height facilitates filling and cleaning of mixer
- Central control eith intuitive keypad and clearly arranged display
- Large tank for maximum operatioanl perfomcance without refuelling
- Support feet for optimal stability on the construction site
- Robust plastic cover according to the highest quality standard
